Semi Locating Cylindrical Bearing Rollers Full Complement SL181872-E SL181852-E

  • 1
  • 2
  • 3

Brand Name : MOUETTE

Model Number : SL181872-E, SL181852-E - Cylindrical Roller Bearing

Certification : ISO/TS 16949:2009, ISO 9001:2008

Place of Origin : China

MOQ : 10

Price : USD20 per Piece

Payment Terms : L/C, T/T, D/A, Western Union, Paypal

Supply Ability : 500,000 Pieces per Month.

Delivery Time : 3-50 working days.(Huge Quantity Stocks Available))

Packaging Details : Plastic bags/plastic films and European Standard Plywood Case.

Name : Semi Locating Cylindrical Roller Bearings

Medias description : Cylindrical roller bearing SL1818..-E, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18

Bore : Cylindrical Bore

Bearing Material : 100Cr6, GCr15, AISI 52100

Size : Metric series

Seal : Open, No Seal

Cage Type : Full Complement, No Cage

Radial Internal Play : Normal Internal Play

Precision : Standard Precision

Heat Stabilization : No Heat Stabilization - Temperatures up to 120 °C

Contact Now

Semi Locating Bearing Cylindrical Roller Bearings SL181872-E SL181852-E

Single row full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.

The SL181872-E is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.

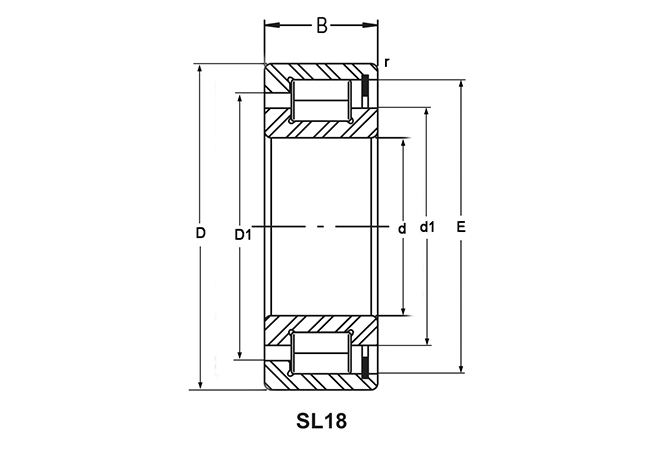

Semi Locating Bearing Cylindrical Roller Bearings SL1818 Series Specifications:

Bearing Code

 Dimensions Loading Rating Limiting speed Mass
d D B d1 D1 E s rmin Dyn. Stat. Fatigue limit load Limiting speed Reference speed
Cr Cor Cur nG nB
mm KN rpm kg
SL181840 200 250 24 216.6 231.6 237.6 2 1.5 178 320 33.5 1450 1040 2.57
SL181844 220 270 24 237.3 252.3 258.5 2 1.5 187 350 36 1320 940 2.8
SL181848-E 240 300 28 260.5 281 287.5 2 2 265 490 51 1200 870 4.29
SL181852-E 260 320 28 281 301.5 308 2 2 275 530 54 1110 790 4.61
SL181856-E 280 350 33 304 327 335 2.5 2 355 670 69 1030 730 6.89
SL181860-E 300 380 38 323.5 350.5 360 3 2.1 455 840 86 960 680 9.79
SL181864-E 320 400 38 344.5 371.5 381 3 2.1 470 900 90 910 620 10.36
SL181868-E 340 420 38 365.5 392.5 402.2 3 2.1 485 960 94 860 570 10.93
SL181872-E 360 440 38 387 413.5 423.5 3 2.1 500 1010 98 810 530 11.49
SL181876-E 380 480 46 415.5 448 459 4 2.1 650 1290 126 750 490 18.87
SL181880-E 400 500 46 432 464.5 475.5 4 2.1 660 1340 130 720 470 19.81
SL181884-E 420 520 46 457 489.5 500 4 2.1 680 1420 135 690 430 20.6
SL181888-E 440 540 46 473.5 506 517 4 2.1 700 1470 139 660 415 21.54
SL181892-E 460 580 56 501.5 541 554 5 3 940 1890 179 620 385 33.21
SL181896-E 480 600 56 522 561 574.5 5 3 960 1970 185 600 365 34.53
SL1818/500-E 500 620 56 542 581.5 594.5 5 3 980 2050 190 580 345 35.73
